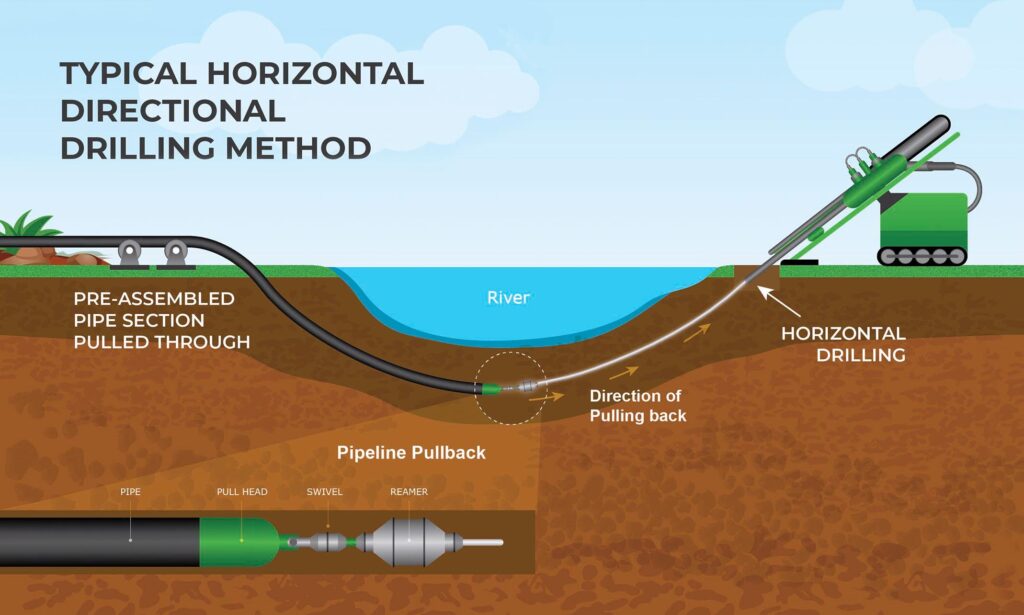

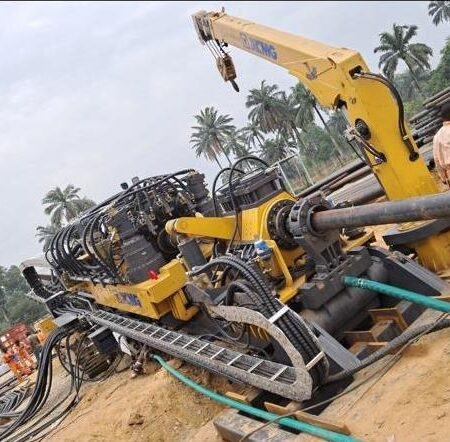

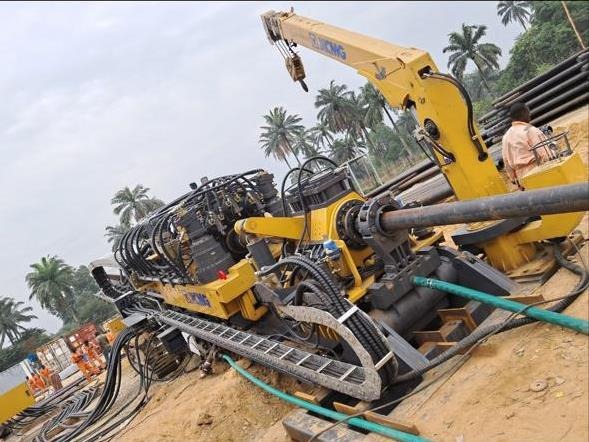

(HDD) is a construction technique whereby a tunnel is drilled under a waterway or other designated area, and a pipeline or other utility is pulled through the drilled underground tunnel.
HDD is a useful construction technique that involves installing pipelines witho ut digging a trench from the ground surface, which reduces impact to the natural environment. In Arabian trenchless company insure enough preparation and study during the design which is important part in HDD world
Arabian Trenchless Company HDD Precommencement :
- Understanding and investigat e HDD Project Site
- Evalua te geotechnical data, soil conditions
- Identify & Mitigat e Risks
- Design and calculate, bore profile, entry and exit points

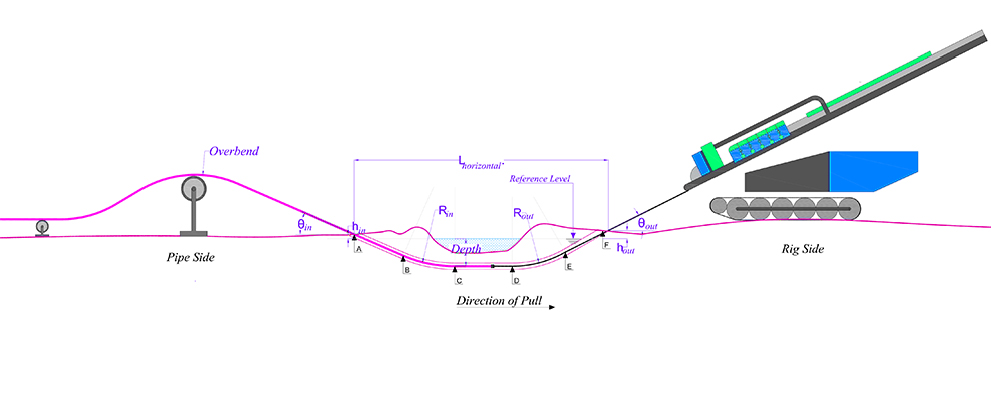

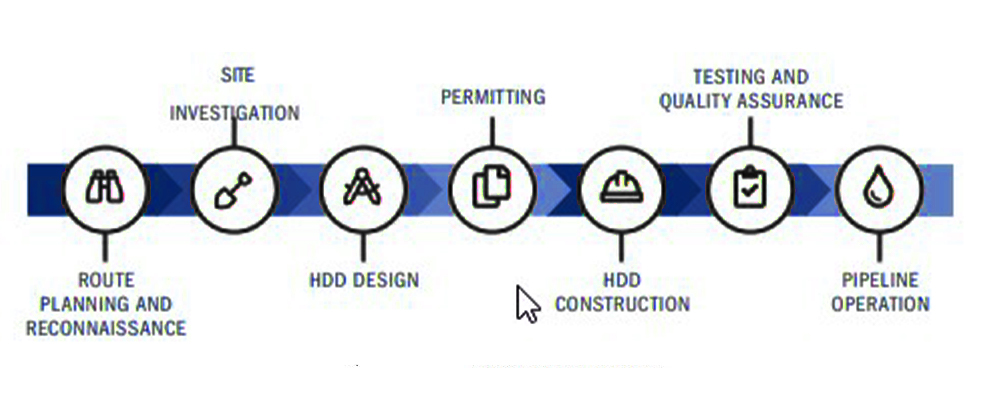

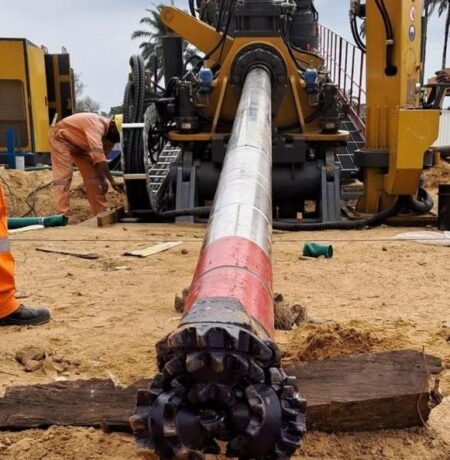

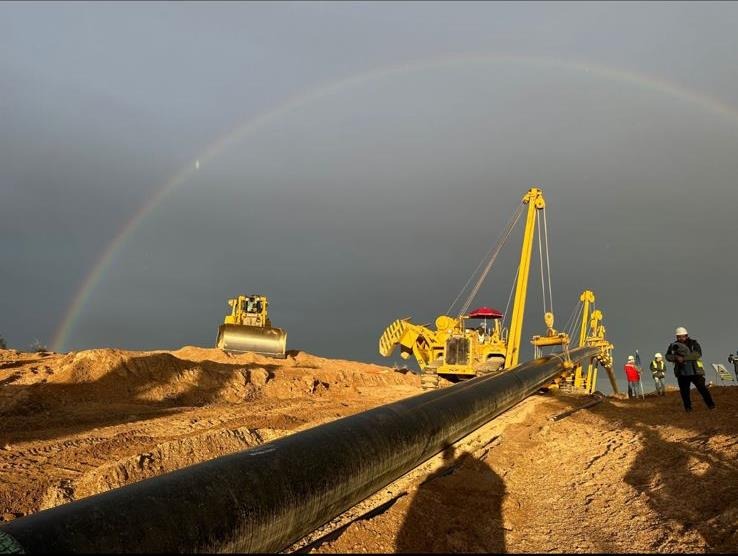

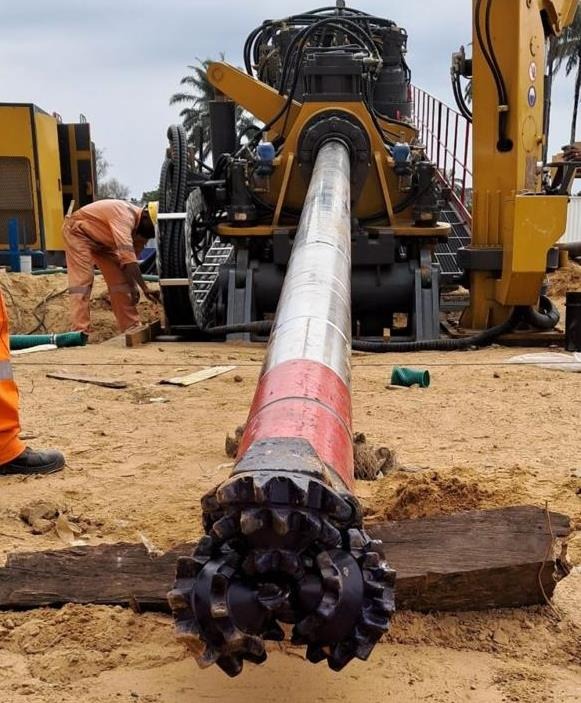

The HDD Process
ParaTrack-2
Advanced Underground Tracking System by Arabian Trenchless Company
ParaTrack-2, distributed and supported by Arabian Trenchless Company, is a next-generation underground tracking and guidance system designed for precise control and navigation during Horizontal Directional Drilling (HDD) operations.
With its advanced capabilities and flexible configuration options, ParaTrack-2 delivers unmatched accuracy and reliability across complex drilling environments.
The ParaTrack Advantage
In certain applications, the centreline cable can be earthed on both sides of the crossing—eliminating the need for a return path and significantly reducing setup time.
ParaTrack can also be deployed underground using an offset borehole, creating a stable magnetic field for precise guidance. Each subsequent pilot bore can use this same base alignment, allowing multiple parallel bores to be drilled with exceptional confidence and accuracy.
Arabian Trenchless utilizes a range of magnetic guidance options—surface or underground guide wires, AC Beacon, Rotating Magnet tool, and MGT tool—to tailor solutions for every unique project challenge.
Proven HDD Expertise
ParaTrack-2, using either DC or AC secondary locating systems, has been a trusted HDD guidance solution for over two decades. At Arabian Trenchless Company, we’ve enhanced its capabilities with our in-house expertise and integration of Pressure While Drilling (PWD) systems. These measure not only annular pressure but also internal tool pressure for real-time feedback and better steering control.
By incorporating non-wired magnetic sources, our systems ensure more accurate bore intersections and enable safe, efficient operations under challenging subsurface conditions. Measuring pilot-hole annulus pressure gives drillers superior control of downhole conditions—helping to minimize formation fractures and environmental impact.
Confidence in Every Crossing
With ParaTrack-2, Arabian Trenchless Company empowers HDD operators to plan and execute the most complex and demanding drilled crossings with confidence, precision, and safety.
Advanced Downhole Navigation by Arabian Trenchless Company

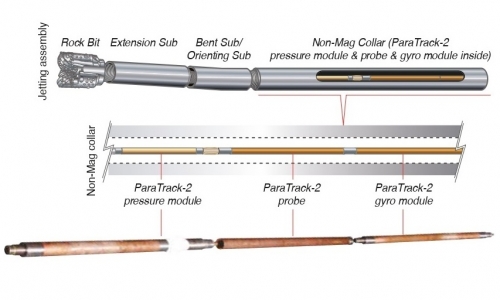

The ParaTrack-2 Guidance System, supplied and supported by Arabian Trenchless Company, features precision-engineered triaxial accelerometers and magnetometers, a temperature sensor, and advanced digital circuitry — all securely enclosed within a 1.75” diameter, 55” long beryllium-copper pressure barrel.
The system ensures highly accurate data transmission and dependable performance through a single-conductor wire line for telemetry and power delivery.

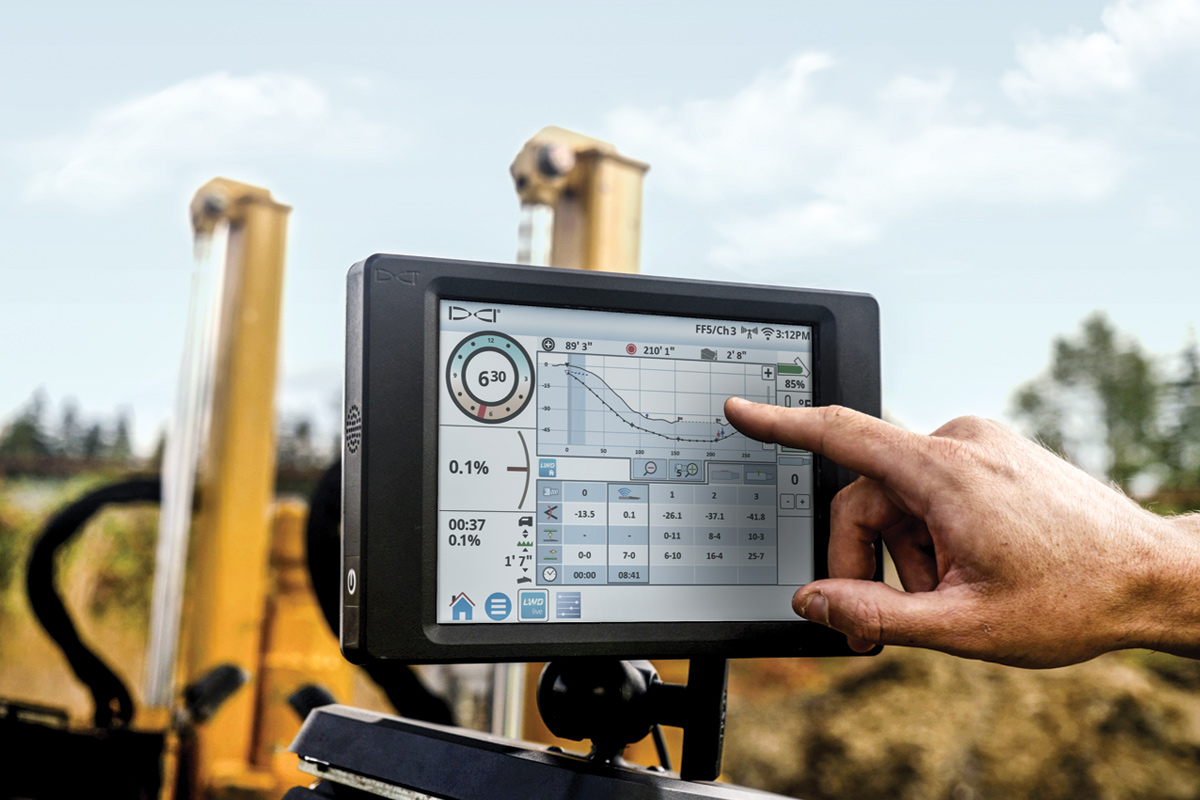

LCD Driller’s Display
Digital Display with Operator-Selectable Screens
- RS232 communication interface
- Available in both wired and wireless configurations for convenient operation
Pressure Module:
- Length: 600 mm (24”)
- Drill pipe annulus gauge: 350 bar (5000 psi)
- Pilot hole annulus gauge: 35 bar (500 psi)
- Orienting pressure sub: 600 mm (24”)
This robust display provides clear, real-time guidance information for the drilling crew to ensure accurate bore path control in all ground conditions.
Specifications
Temperature Rating: 85°C (185°F)
Pressure Rating: 1200 bar (17,400 psi)
Sensor Accuracy
- Inclination: ±0.1°
- Azimuth: ±0.3°
- Tool face: ±0.25°
Dimensions
- Outer Diameter: 45 mm (1.75”)
- Length: 1405 mm (55”)
- Maximum Wire Line Length: 5000 meters (16,000 ft)
Engineered for reliability and precision, the ParaTrack-2 system offers dependable data acquisition even in deep and
Interface Unit
Compact power and communication interface linking the probe, laptop, and driller’s display.
Front-mounted control panel for ease of access
Side-mounted wire connections for quick setup and organized workstations
Electrical Specifications
Input: 85–265 VAC, 50–60 Hz
Output: 48 VDC, 50 mA–1000 mA
Power fused on both input and output
Integrated analog amperage display
Supports both a secondary laptop and existing driller’s display for dual-monitor operation and enhanced field visibility.
Guide Wire Supply
A compact, durable guide wire power unit designed for mounting atop the interface unit in the control cabin or near the bore exit point.
Electrical Specifications
Input: 85–265 VAC, 50–60 Hz
Output: 3 or 6 Amps p-p at 50 Hz
This system ensures stable power supply for the wire line, maintaining continuous telemetry for precision-guided trenchless drilling.
